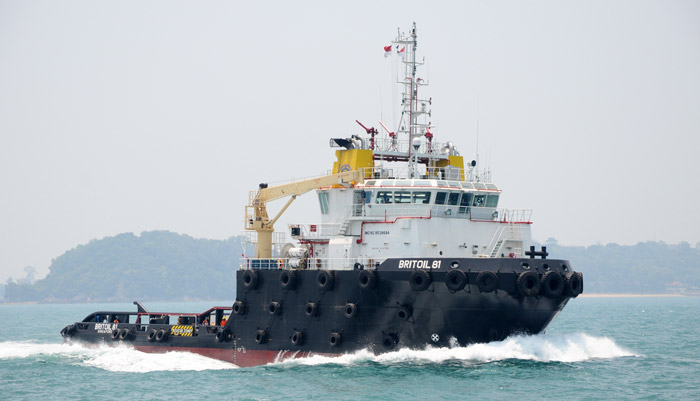

Britoil 81
|
| Name of Vessel |
Britoil 81 |
Registry |
Singapore |
| Year of Delivery |
2009 |
Type |
Ocean Going / Anchor Handling / Towing Tug |
| Classification |
ABS: + A1, Towing Vessel, (E), + AMS, + AH, FiFi 1, DPS-1 |
Dimensions |
56.0m x 16.0m x 7.5m |
| GRT / NRT / DWT |
2049T / 614T / 1746T |
Designed Draft |
6.0m |
| Clear Deck Space (Main Deck) (Forecastle Deck) |
23.0m x 12.3m 3.0m x 14.0m |
Speed |
14 knots |
| Bollard Pull |
110T |
Endurance |
15,000 nautical miles @ 13 knots |
| Accommodation |
Fully air-conditioned for 48 men |
Lifesaving |
Comply to SOLAS requirements |
| Fuel |
1180 mt |
Firefighting |
FiFi 1 |
| Fresh water |
296 mt |
Freshwater Maker |
12 mt/day |
| Main Engines & Gearboxes |
2 x MaK 6M32C diesel engines producing 4080 BHP each @ 600 rpm c/w 2 x Reintjes LAF 4555 gearboxes, ratio 3.96:1 |
Main Generators |
3 x 800kW, 380v/3/50Hz, Caterpillar Model 3508B diesel driven, and 1 x 450kW, 380v/3/50Hz, Caterpillar Model C18 diesel driven |
| Main Engines Consumption |
22,000 litres MGO and 80 litres lube oil per 24 hours @ full power. 14,000 litres MGO and 60 litres lube oil per 24 hours @ economic cruising speed of 10 knots |
Generator Consumption |
1,200 litres MGO and 24 litres lube oil per 24 hours |
| Bow Thruster / Stern Thruster |
1 Bow thruster, Brunvoll Model FU-63-LTC-1550, 750kW, 10T thrust 1 Stern thruster, Brunvoll Model FU-63-LTC-1550, 570kW, 8T thrust |
Emergency Generator |
1 x 86kW, 380v/3/50Hz, Caterpillar Model C4.4 diesel driven |
| Propulsion |
2 x 3600mm diameter, 4-bladed CPP propeller Cu-Ni-Al bronze in kort nozzles |
Steering Gear |
Ulstein Tenfjord electro hydraulic steering gear, Type: 2 x SR662 Torque: 136 knm each |
| Fuel Oil Purifier |
Mitsubishi self cleaning fuel oil purifier SJ-10G |
Lube Oil Purifier |
Mitsubishi self cleaning lube oil purifier SJ-20G |
| Anchor Windlass |
1 x Brattvaag Hydraulic, 15T @ 0-23m/min |
Anchors |
2 x 2,100kg stockless anchors |
| Anchor Chain |
2 x 412.5m x 36mm diameter U3 steel stud link chain |
Towing / Anchor winch |
Brattvaag double drum waterfall type SL150W-2T hydraulic winch with remote controls in wheelhouse 150T pull @ 0–13 m/min 74T pull @ 0–21m/min 30T pull @ 0–29m/min Wire Capacity :- 1200m x 67 mm dia. Brake holding: 300T |
| Crane |
North Pacific Crane model: 2T3T25M MOD – 2.5T @ 25m |
Tugger Winch |
2 x Brattvaag, 10T line pull @ 0-38.5 m/min |
| Wire Storage Reels |
2 x Brattvaag, 8.8T line pull @ 0-42.6 m/min, storage reels will contain 1200m x 67mm dia. 1 x Brattvaag, 20T line pull @ 0-27 m/min, storage reels will contain 1700m x 67mm dia. |
Shark jaws / Towing pins |
1 x Triplex guide pins, type S-200 2 x Karmfork shark jaws 1 x Triplex shark jaw, type H-350-N |
| Fendering |
Flat bar doubler plates of 400mm x 25mm cross section welded to side shell |
Cutting equipment |
Two bottles oxygen and one bottle acetylene c/w cutting torch |
| Liferafts |
4 x 25 men |
Radar |
2 x X-band Radar. Furuno Model FAR 2117 |
| Rescue Boat |
1 x 6 men |
DP System |
Converteam DP 1 equipment, c/w 1x DP Control Station, 1x UPS, 1x DGPS, 1x CYSCAN Laser Reference System, 1x Gill Anemometer, 1x TSS Gyro, 1x MRU, etc. |
| GMDSS Radio Console |
FURUNO model RC-1800T-25, A1-2-3 radio package. 24VDC/220VAC with manual c/over to emergency supply, to meet GMDSS requirement. Complete with: -1x HF/MF SSB radiotelephone, FURUNO model FS-2570 (250W); -2x INMARSAT C terminal (one with SSAS), FURUNO model FELCOM-15 |
VHF |
2 x VHF/DSC marine radio telephones. FURUNO model FM-8500 (25W) |
| Gyro & Automatic Pilot |
1 x Gyro, TKC model TG8000; 1 x Autopilot, Anschuetz model NP 60 for double rudders. |
Weather Facsimile |
1 x FURUNO model FAX-408 |
| Other Navigation and Communication Equipment |
EPIRB, Radar Transponders, Navtex Receiver, GPS Navigator, Anemometer, Echo Sounder, Speed log, AIS, Simrad Cx44 GPS Chart Plotter, Omni-Direction TV System, P.A./Talk Back System, Common Battery Powered Telephone, Automatic Telephone System, Mini-Vsat. System, ICOM VHF Radio-telephones, VHF Walkie-Talkie. |
Fire Monitors |
2 fixed fire monitors of 1,200m³/hr each @ 135m head capacity. 2 fire pump of 1672m³/hr each. 1 fixed foam/water fire monitors of 360m³/hr @ 160m head capacity. 1 x foam pump of 10m³/hr |
| CCTV |
GALAZ-C, 4 x camera, 2 x monitor |
Fuel Trax System |
NCS FuelTrax GS150-2 |
| Joystick |
Kongsberg cJoy |
Oil Dispersant System |
2 sets spray nozzles, type UOC 600, 1 ¼†(M) x 1 ¼†(F), brass, duty 276 liters @ 4.14 bar |
| Sewage Treatment Plant |
Jowa BIO STP 4 for 50 men |
|
|
