PSV Britoil Power

Vessels Specifications

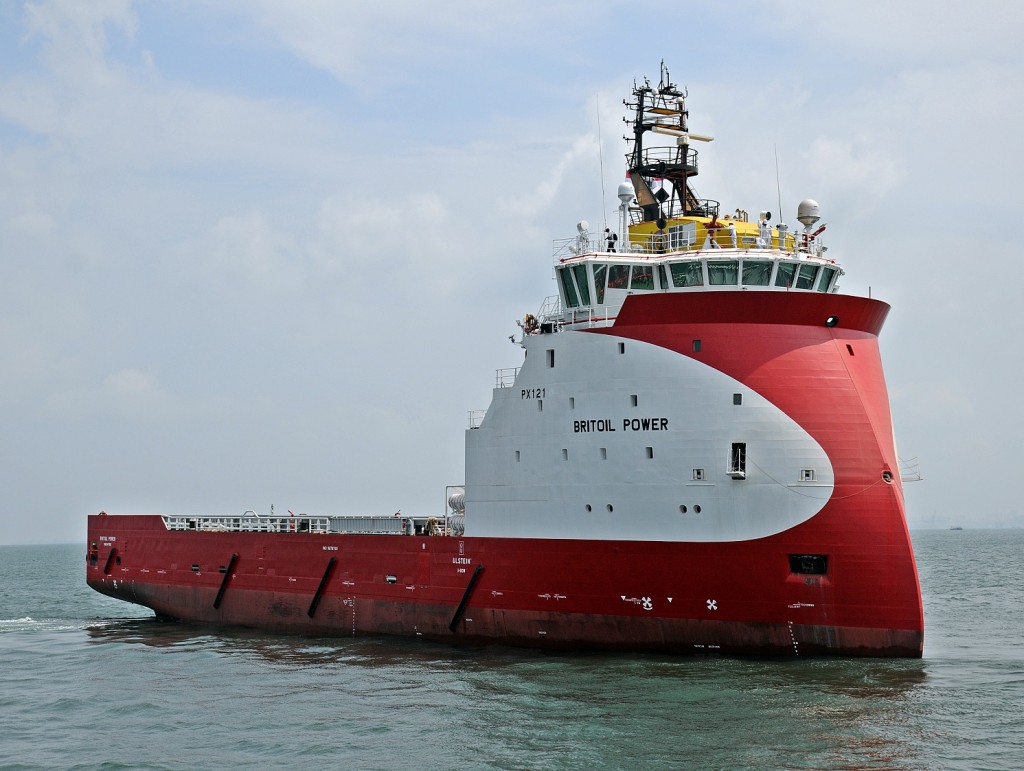

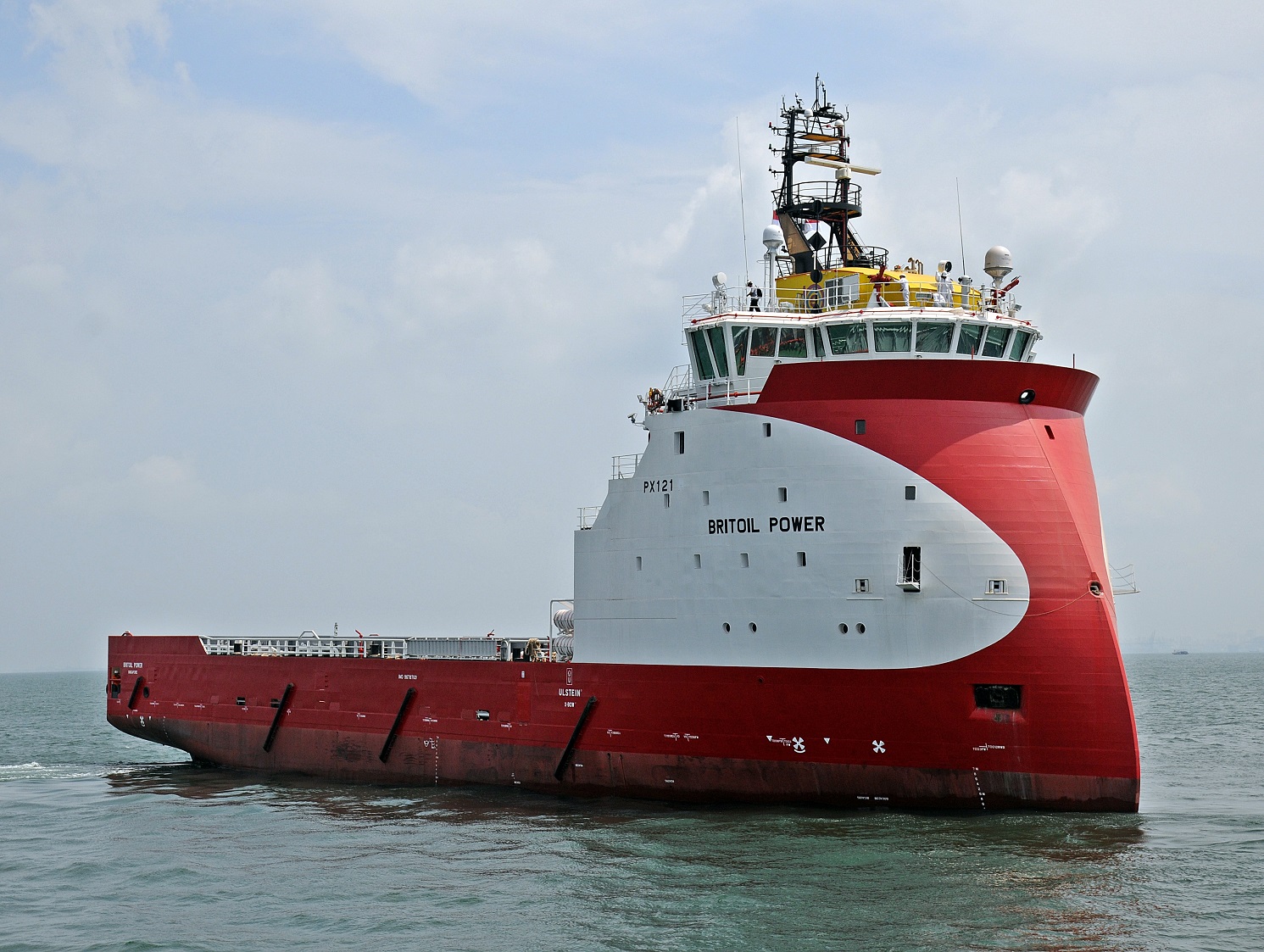

Britoil Power

Name of Vessel Britoil Power Registry Singapore
Year of Delivery 2015 Type Platform Supply Vessel
Classification DNVX1A1, Offshore Service Vessel, Supply, SF, EO, DYNPOS-AUTR(DP2), NAUT-OSV(A), CLEAN DESIGN, COMF-V(3), COMF-C(3), LFL*, DK(+), HL(+), OILREC, BIS, SPS, Fire Fighter I Dimensions 83.4m x 18m x 8m
GRT / NRT / DWT 3880T / 1272T / 4070T Speed 14.5 knots
Clear Deck Area 850m² Clear Deck Space (Main Deck) 56m x 15m
Maximum Draft 6.7m Minimum Working Draft 4.1m
Accommodation Fully air-conditioned for 60 men Lifesaving 1x 15 persons Fast Rescue Boat
Dynamic Positioning DP System Kongsberg K-POS DP-21 Class 2 External Firefighting FiFi 1
Deck Machinery & Equipment 1x SWL 2 tonne sDeck Crane & 2x 10T Tugger Winch Bow Thruster 1x Tunnel thruster. Fixed speed, controllable pitch type. Propeller diameter approx. 1,850 mm. Motor output approx. 800 kW at 1,500 rpm. Maximum top speed on propeller to be 28 m/s & 1x Retractable azimuthing thruster. Variable speed, fixed pitch type, with frequency converter. Propeller diameter approx. 1,800 mm. Motor output approx. 880 kW at 0-1,800 rpm
Fuel Oil (Cargo & Domestic) Approx 1450m² – 19 combined tanks Fresh Water (Cargo & Domestic) Approx 1050m² – 11 combined tanks
Main Engines 2x CAT C280-6 main generators, maximum continuous rating approx. 1,925 ekW at 1,000 rpm, 3 x 690 V / 50 Hz & 2x CAT C32 main generators, maximum continuous rating approx. 800 ekW at 1,500 rpm, 3 x 690 V / 50 Hz Main Propulsion (Azimuthing Thrusters) 2x Electrical propulsion motors, each approx. 1,600 kW output at 1,800 rpm & 2x Frequency converters for electrical propulsion motors. The main switchboard is divided into 690V, 400V and 230V system.
Radio & Navigation Equipment GMDSS: Area 1, 2 & 3. Radio: 1x Furuno FS-2575 MF/HF. MF/HF: 1x Radio 250W. NAVTEX: 1x NX-700B Receiver. EPIRB: 1x Jotron Tron 60S 406Hz. Autopilot: 1x L-3 Autopilot/Track Pilot. Radar: 1x X-band + 1x S-band. ECDIS: 2x L-3 Nascos Platinum Chartpilot + 2x Conning Display. DGPS: 2x Furuno GP150. Gyrocompass: 2x Anschutz Gyro Comp Standard 22. Repeater Comp: 2x Anschutz Gyro Comp Bearing Repeaters. Magnetic Comp: 1x Anschutz Magnetic Compass. VDR System: 1x L-3 VDR 4350. Sound Reception: 1x SR8200 Photech. AIS: L-3 AIS 3410 Transceiver. Speed Log: 1x Furuno DS-80. Echosounder: 1x Furuno FE-700. SART: 2X Jotron AIS-SART. Digital Repeater: 1x Furuno RE-33 Digital. UPS: 3x UPS for navigation system. Data Transmission: 2x Furuno Felcom 18 Sat-C, 1x Furuno Felcom – 250 Fleet Broadband, 1x KVH mini-Vsat Trackphone V11 IP-C+Ku-Band & 1 x Iridium Open Port. VHF/UHF: 2 x Furuno FM 8900 VHF Dsc, 1x VHF Slave Handset, 3x Sailor SP3530 Port VHF, 3x Motorola GM-380 Fixed UHF, 3x Furuno FM-4720 radio & 3x SP3560 Atex Port UHF
